Twotrees Nema 17 Stepper Motor Bipolar 1.5A 42N.cm High Torque 1.8 Degree 38MM 4-Lead /1m Cable for 3D Printer/CNC

Twotrees Nema 17 Stepper Motor Bipolar 1.5A (17HS4401) 42N.cm (60oz.in) High Torque 1.8 Degree 38MM 4-Lead /1m Cable for 3D Printer/CNC (Pack of 5)

---

מדורג ע״י יותר מ- 46 צרכנים, יותר מ- 91% מהביקורות על Twotrees Nema 17 Stepper היו בעלות סנטימנט חיובי, כלומר הצרכנים שקנו את המוצר ימליצו עליו בסבירות גבוהה כאשר יתבקשו לציין מנועים למדפסות תלת־ממד מומלצות.

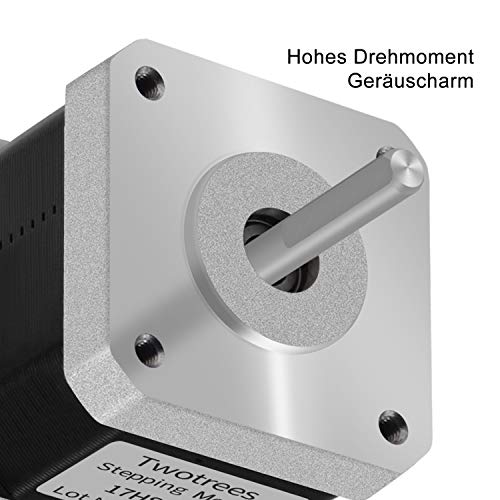

This is high torque Nema 17 stepper motor with 1.8 deg.Each phase draws 1.5A,allowing for a holding torque of 42N.cm (60oz.in）
40cm wire, one connect electrical machine, on the other end has variety optional ports.
It's ideal for the RepRap Prusa, Mendel 90, Rostock and， similar 3D printers, as well as CNC and robotics applications.

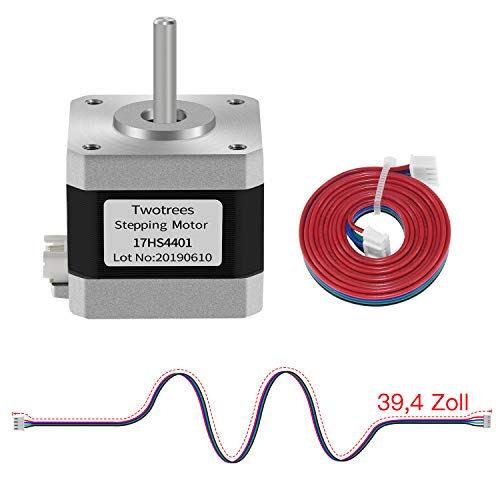

The motor is supplied with a 1 metre long power cable with a 4-pin Harwin female connector already fitted - ready to plug and print!


Electrical Specification:
Product type:Bipolar 42 Stepper Motor
Step Angle: 1.8 deg.
Rated Current/phase: 1.5A
Holding Torque:42N.cm (60oz.in)

General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength--------500VAC for one minute.

Package Included:
5 X Nema 17 Stepper Motors
5 X Cables

מאפיינים: ( תרגום אוטומטי עבור למקור )

• High Torque Twotrees stepper motor Adopting high quality motor steel material, is provided with high torque 42Ncm 60ozin , low self inductance reactance, responsive and can avoid system error.Low loss stators have better high speed performance.
• Low Resistance Twotrees stepper motor can get a lower resistance value compared to motors of the same thickness and torque. This considerably increases the thermal conductivity of the motor. This effectively reduces the increase in temperature.

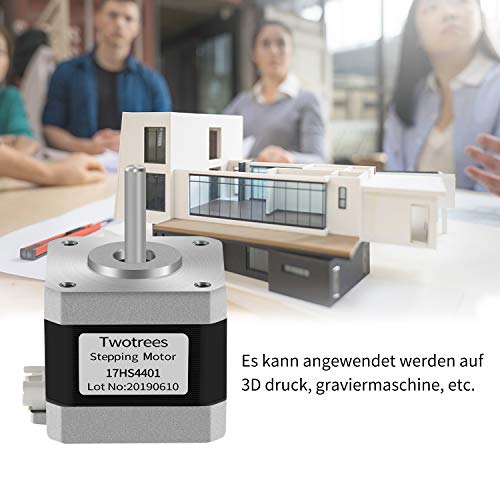

• Wide Application This small stepper motors can be used in various area, such as 3D printer stage lighting laser engraving textile machinery medical equipment placement machine non standard equipment automation equipment etc.
• Excellent Service CE certified Each nema 17 stepper motor has undergone a rigorous quality control ex works, can carry out a 24 month quality assurance . If need further please feel free contact us, we very happy to assist you.

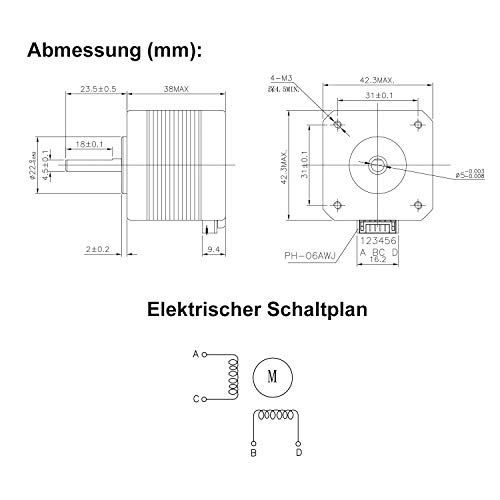

• What Do You Get The package includes 1 38mm Stepper Motor 1pcs 1m 4pins cable and connector Size 42mm X 42mm X 38mm 1.65 x1.65 x1.49 ,NEMA 17 bipolar 4 wire Black A , Green A , Red B , Blue B

זיהוי:

• מספר יצרן: Twotrees-16564 .

מידות ונתונים:

• מותג : Twotrees
• מספר קטלוגי : Twotrees-16564
• מידה : 5pcs
