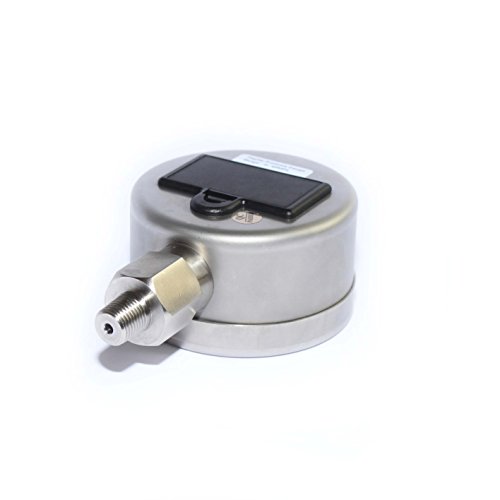

XZT 3.15" Digital Hydraulic Pressure Gauge 0~10000PSI-1/4BSP -Base Entry

XZT 3.15" Digital Hydraulic Pressure Gauge 0~10000PSI-1/4BSP -Base Entry

---

Specification:
Pressure Range: 0-700BAR/70Mpa/10000PSI;
Pressure Connection: BSP1/4(G1/4);
Display Unit: Bar, PSI ,MPa, Kgf/cm2;
Overload Capacity: 150%;
Accuracy: 0.4%FS;
Long-term Stability: 0.4%FS/year;

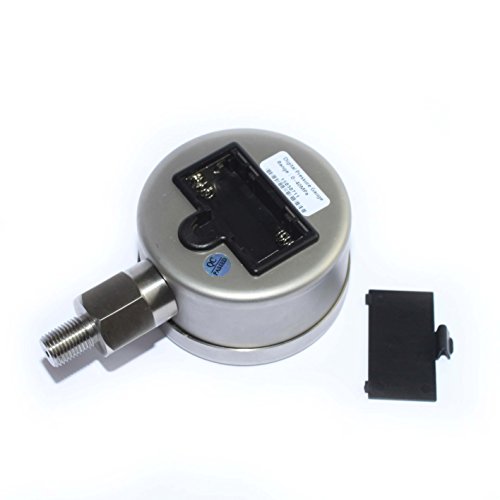

Input Voltage: 3V (two 1.5V AAA batteries);
Working Temperature: -20C-70C;
Footer Material and Pressure Connection: 304 Stainless Steel;
Protection Class: IP65
Thickness: 46mm(18.1inch);
Outline Dimension: 80mm(31.5inch);
Length:120mm(47.2inch).

Features:
Button Description:
Power button: press power button continuously for 3 seconds to Turn On or Turn Off;
UNIT button: shortly press Unit button to change the unit;
Long press "unit" button for 5 seconds, the display after the last reset
record maximum MAX;
Short press "unit" button, switch according to the minimum MIN.
Again short press "unit",then quit the records show.
ZERO button: pressure Zero button continuously for 3 seconds for zero clearing;
LIGHT button: press Light button shortly to turn on or turn off the light,will be closed automatically after 70 seconds.

Package Content:
1 x Digital Pressure Gauge;
1 x Manual.

מאפיינים: ( תרגום אוטומטי עבור למקור )

• 1 Change Units Bar, PSI ,MPa, Kgf cm2
• 2 Zero Clearing
• 3 Backlight
• 4 Accuracy 0.5%FS
• 5 Can be record highest Pressure
• 2 Zero Clearing Connection BSP1 4 G1 4

זיהוי:

• יצרן: XZT
• UPC קוד: 600748681020 .
• EAN קוד: 0600748681020 .
• מודל: Digi Gauge-80mm-700BAR-1/4BSP .
• מספר יצרן: Digi Gauge-80mm-700BAR-14BSP .

מידות ונתונים:

• מותג : XZT
• מספר קטלוגי : Digi Gauge-80mm-700BAR-1/4BSP
